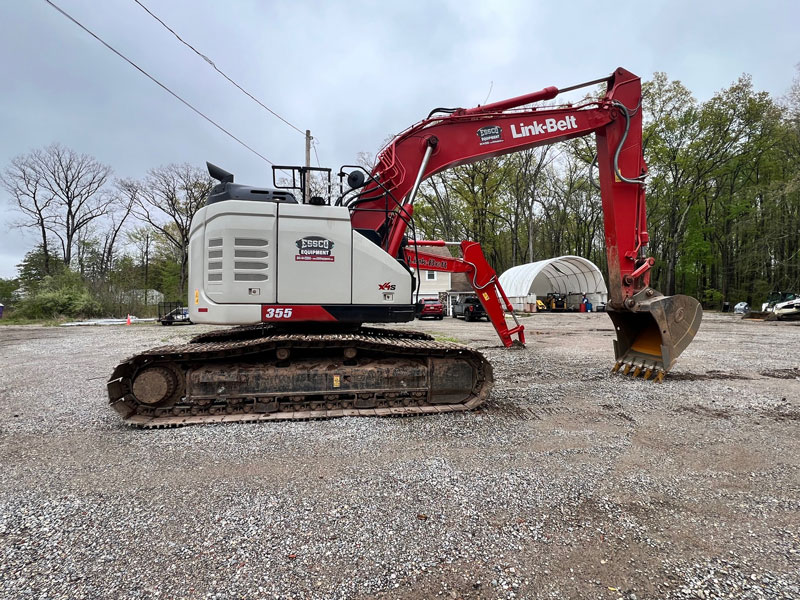

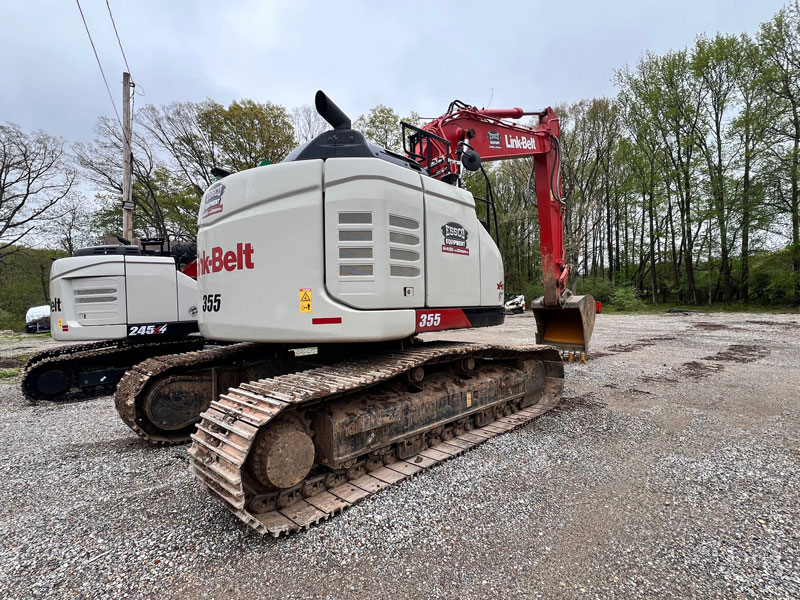

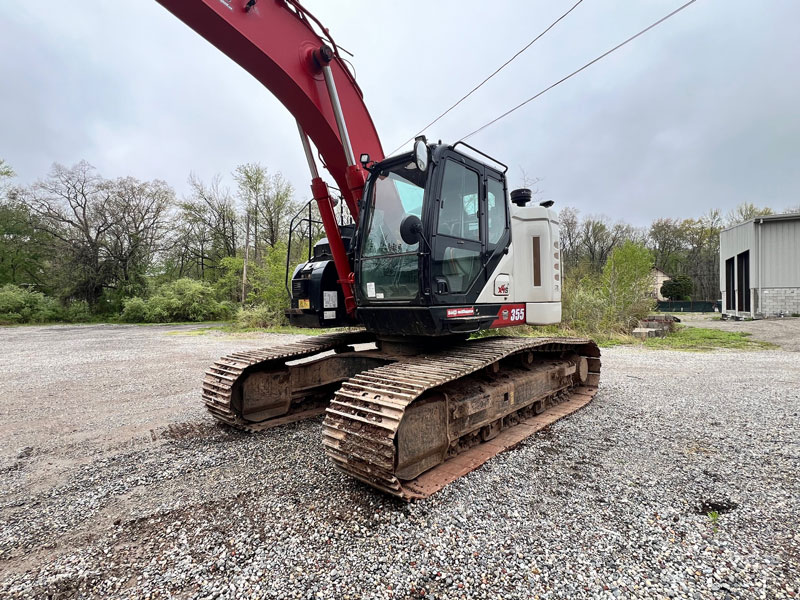

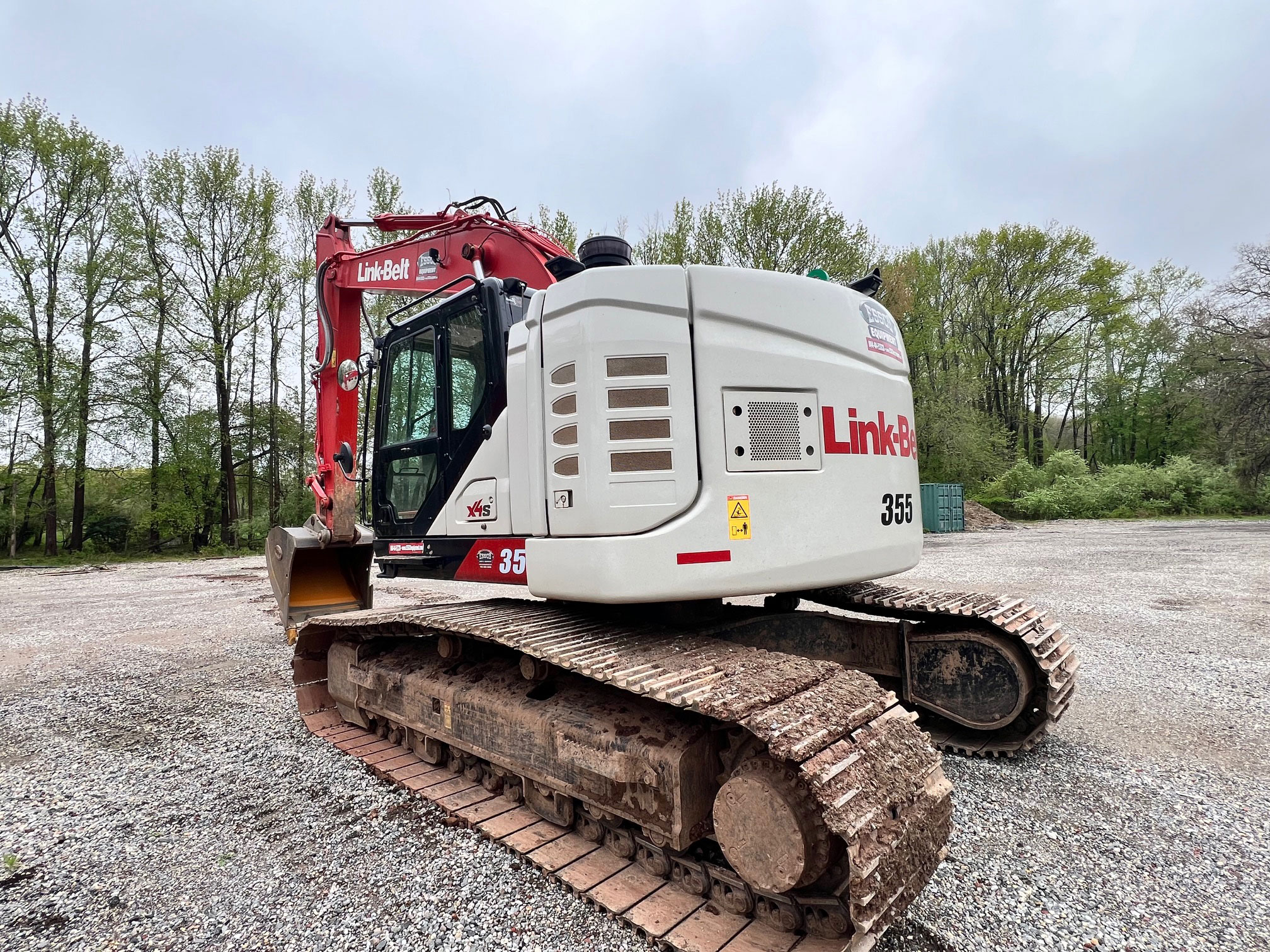

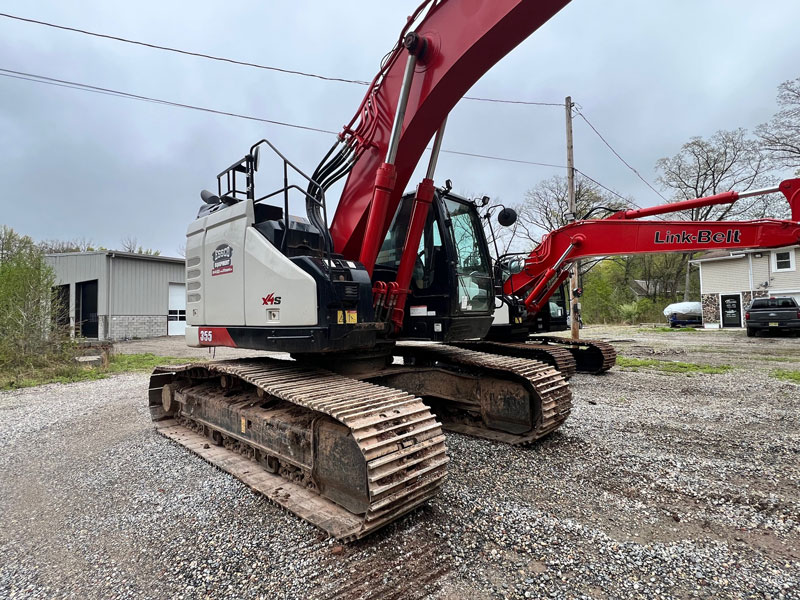

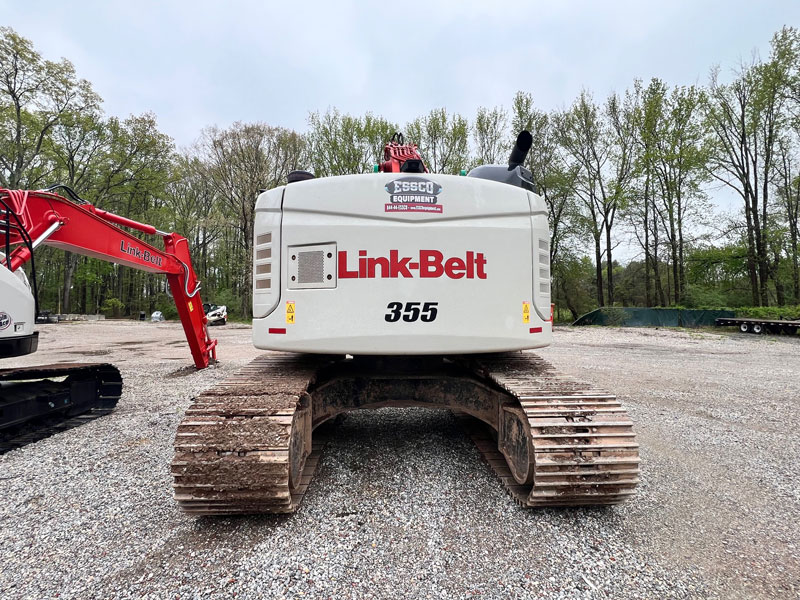

2023 Link-Belt 355X4S Excavator

Comes with 3 year/4,000 full machine warranty

Kenworth

Call for price

  • Engine: Isuzu AQ-6HK1X (205 HP @ 1,800 rpm)
  • Operating Weight: ~78,700–79,000 lbs (35.7 metric tons)
  • Max Dig Depth: 24′5″
  • Max Reach: 34′8″
  • Bucket Digging Force: 42,780 lbf
  • Arm Force: 31,280 lbf
  • Bucket Capacity (SAE Heaped): 0.8 – 2.43 cu. yd.

Hydraulics & Performance

  • Flow Rate: 2 × 64.2 gpm
  • System Pressure: 4,970 psi (Power Boost: 5,410 psi)
  • Swing Torque: 67,900 lbf-ft
  • Swing Speed: 10.2 rpm
  • Travel Speed: 2.7 mph

Dimensions & Undercarriage

  • Tail Swing: 6′6″
  • Width: 11′2″ (with 31.5″ shoes)
  • Track Rollers: 8 per side
  • Carrier Rollers: 2 per side

Features

  • WAVES (Wide Angle Visual Enhancement System): 270-degree viewing system

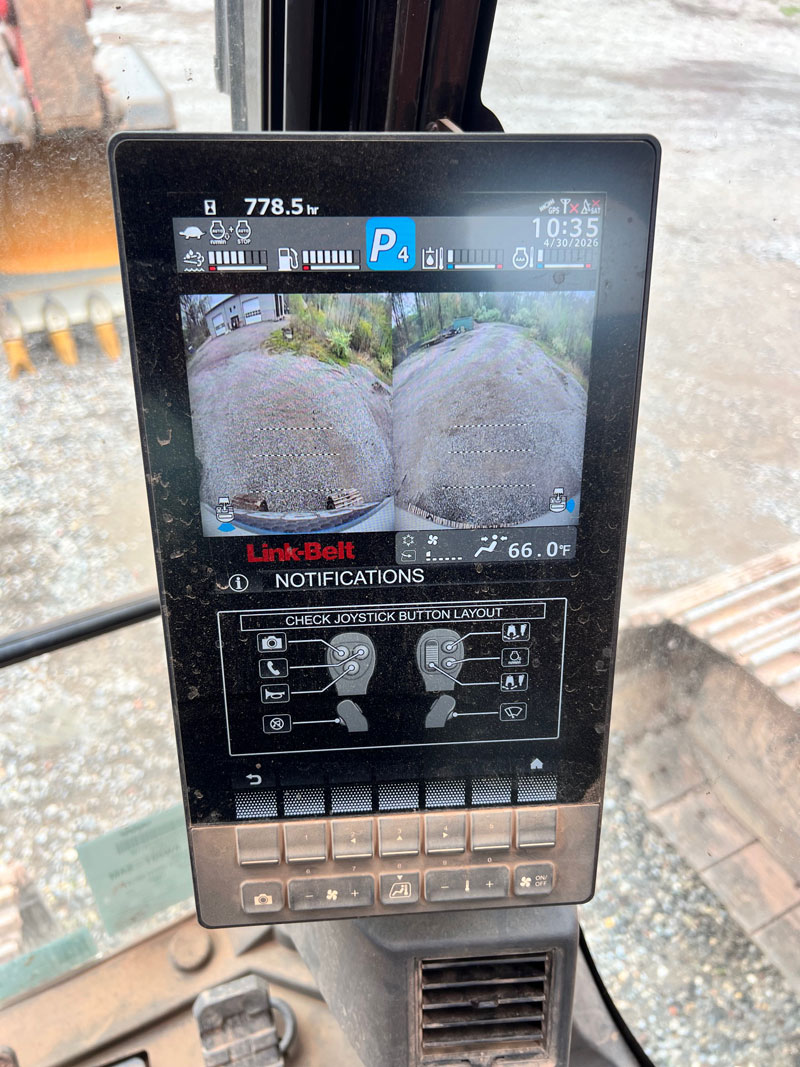

  • Controls: 10-inch color monitor for machine data and camera views
  • Work Modes: Four selectable modes with Custom Flow Balance technology
